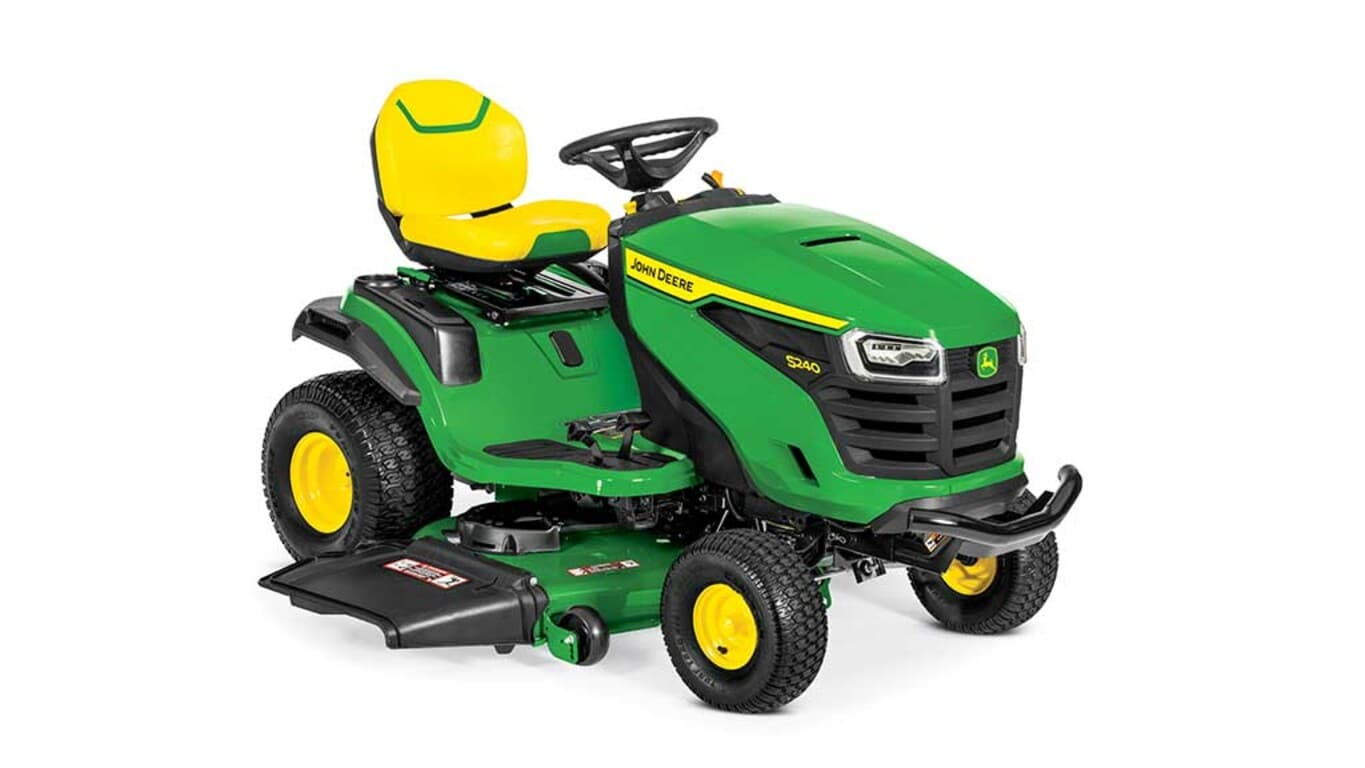

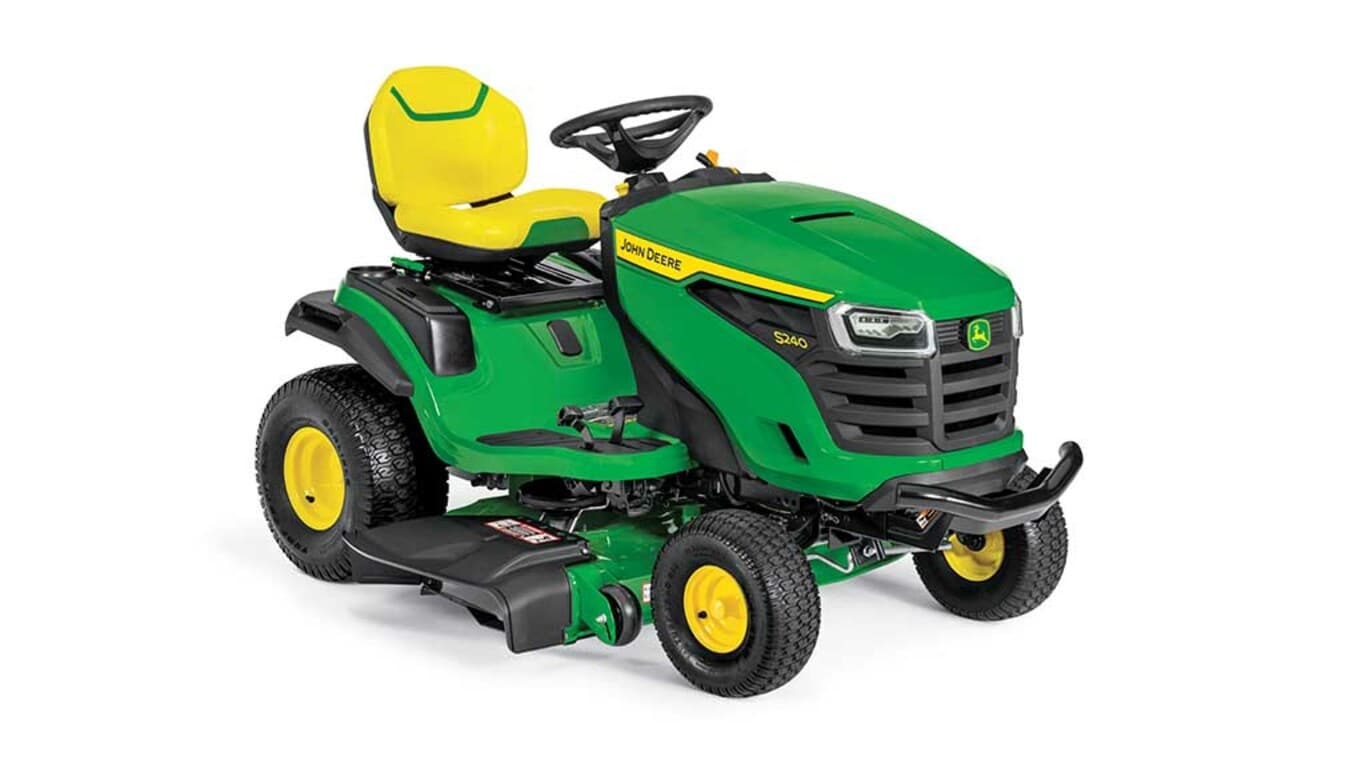

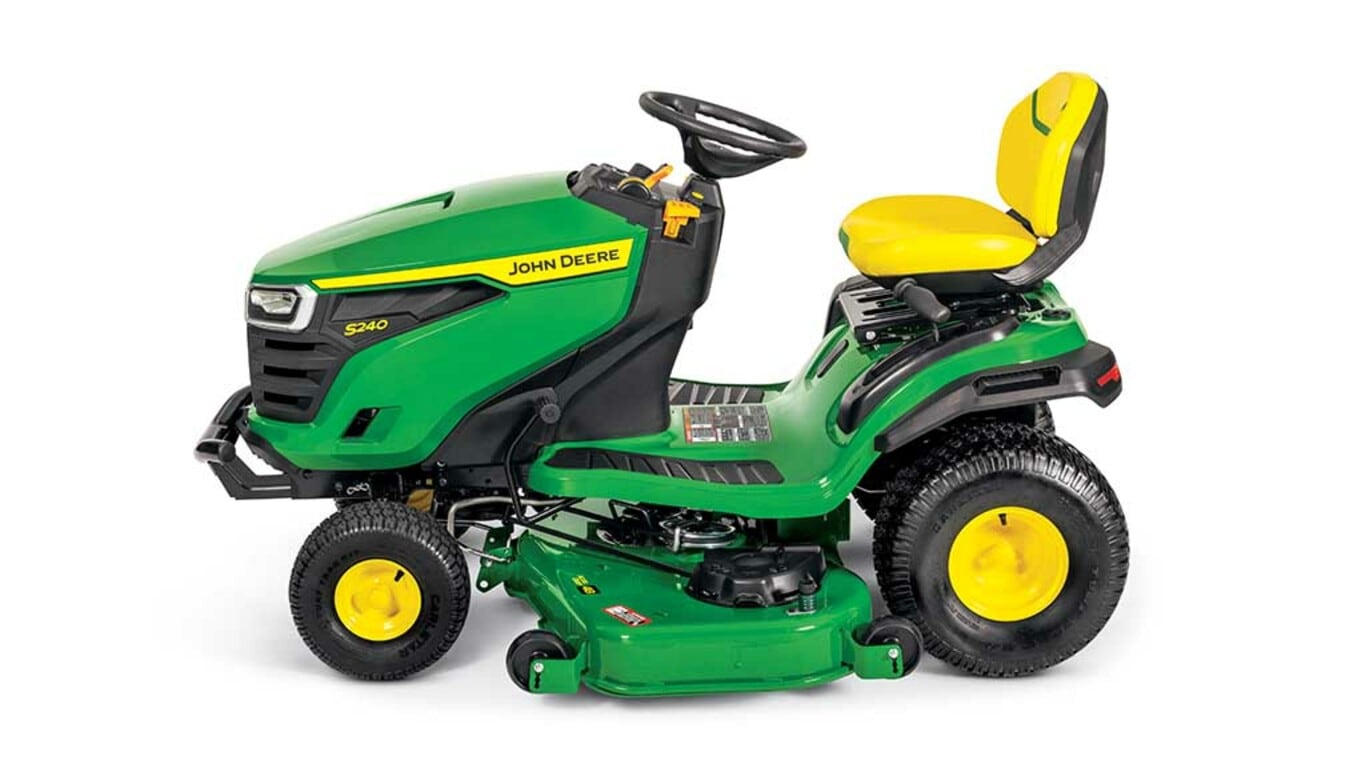

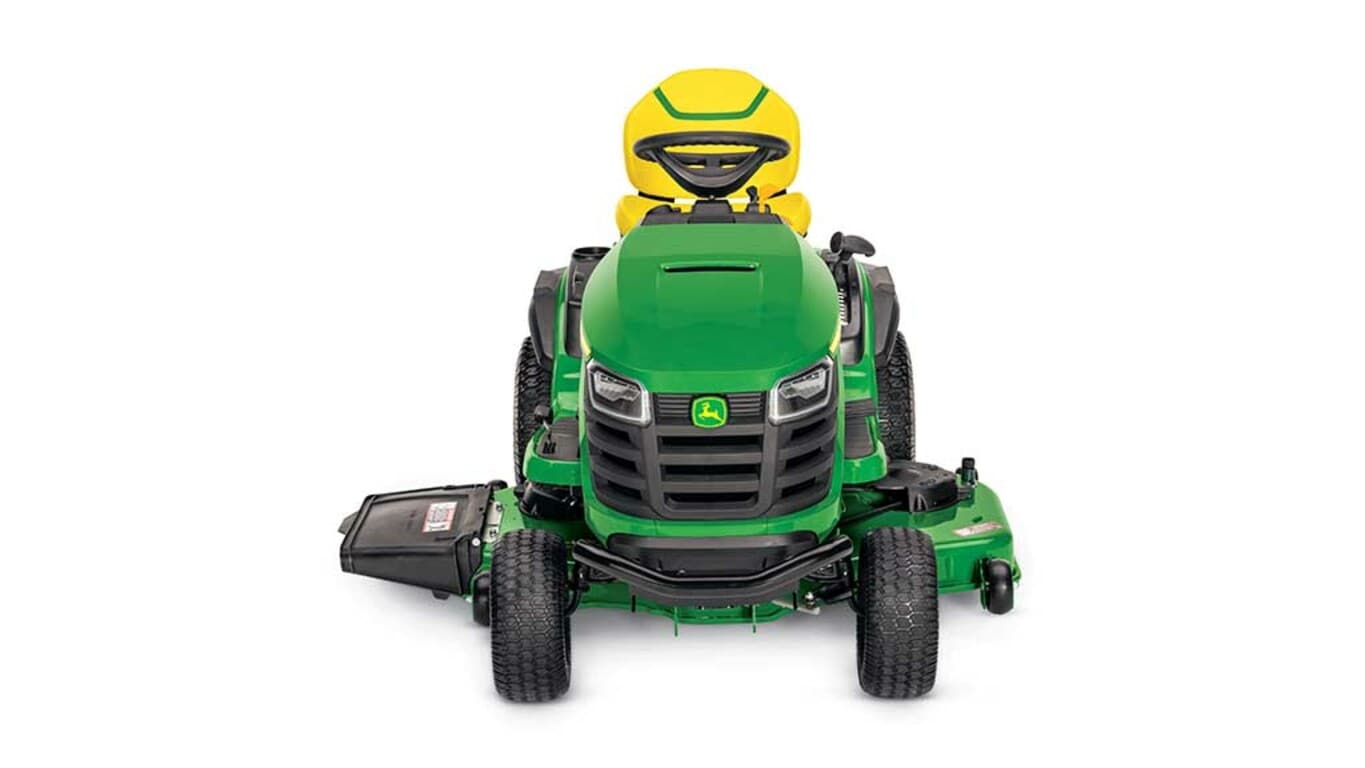

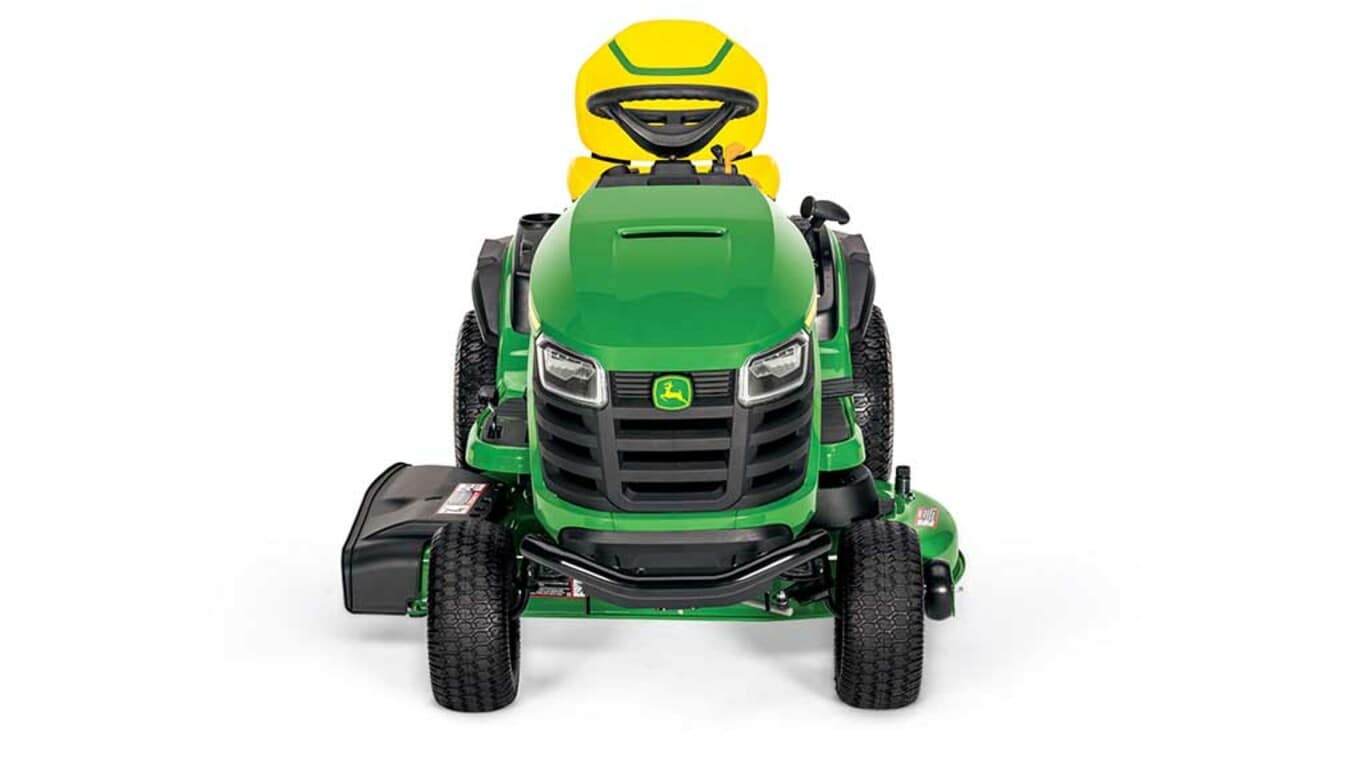

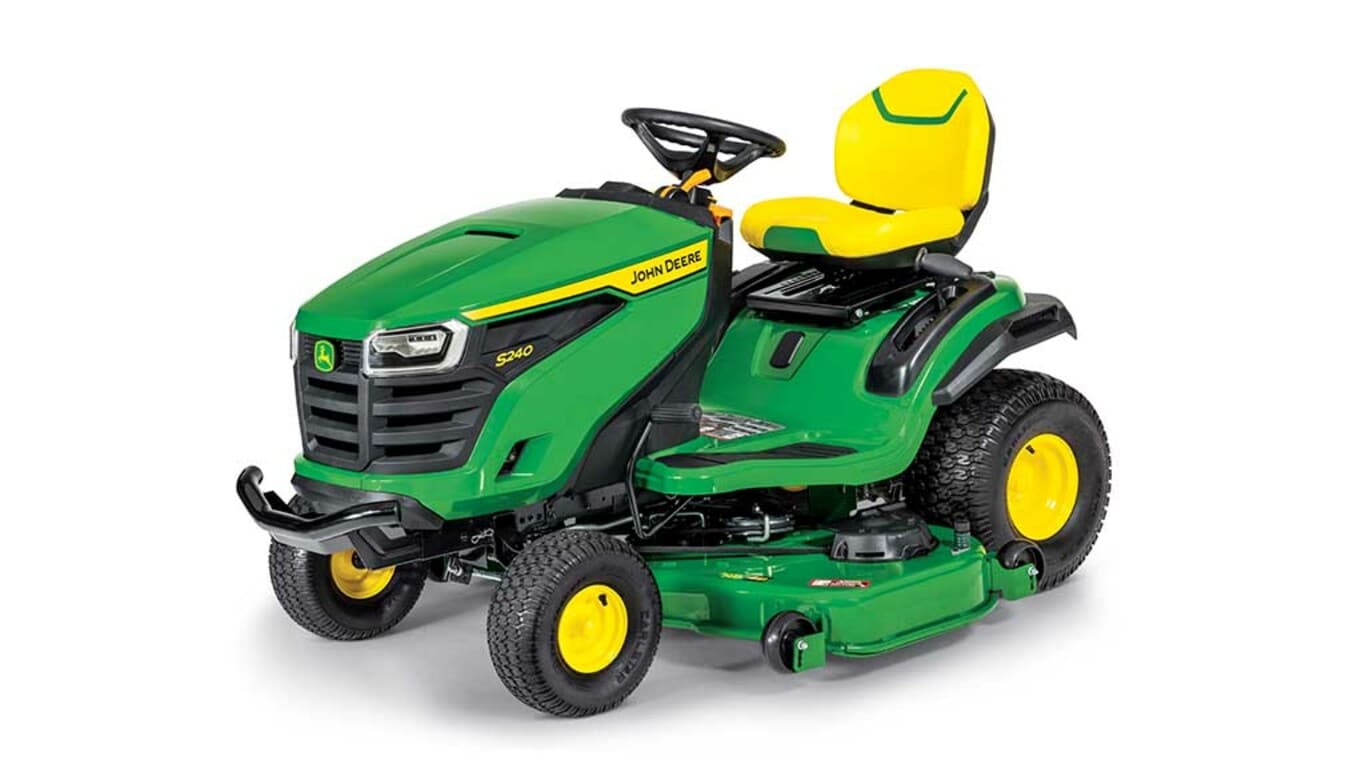

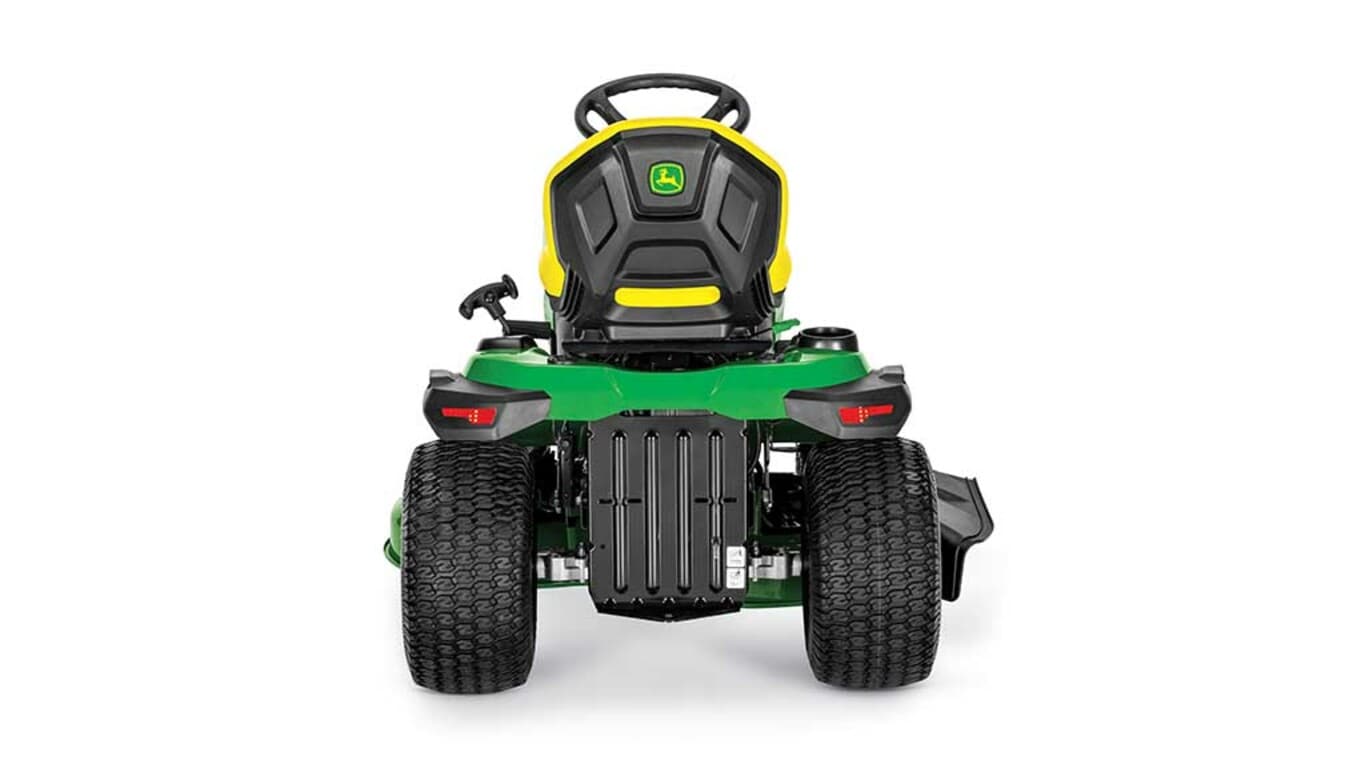

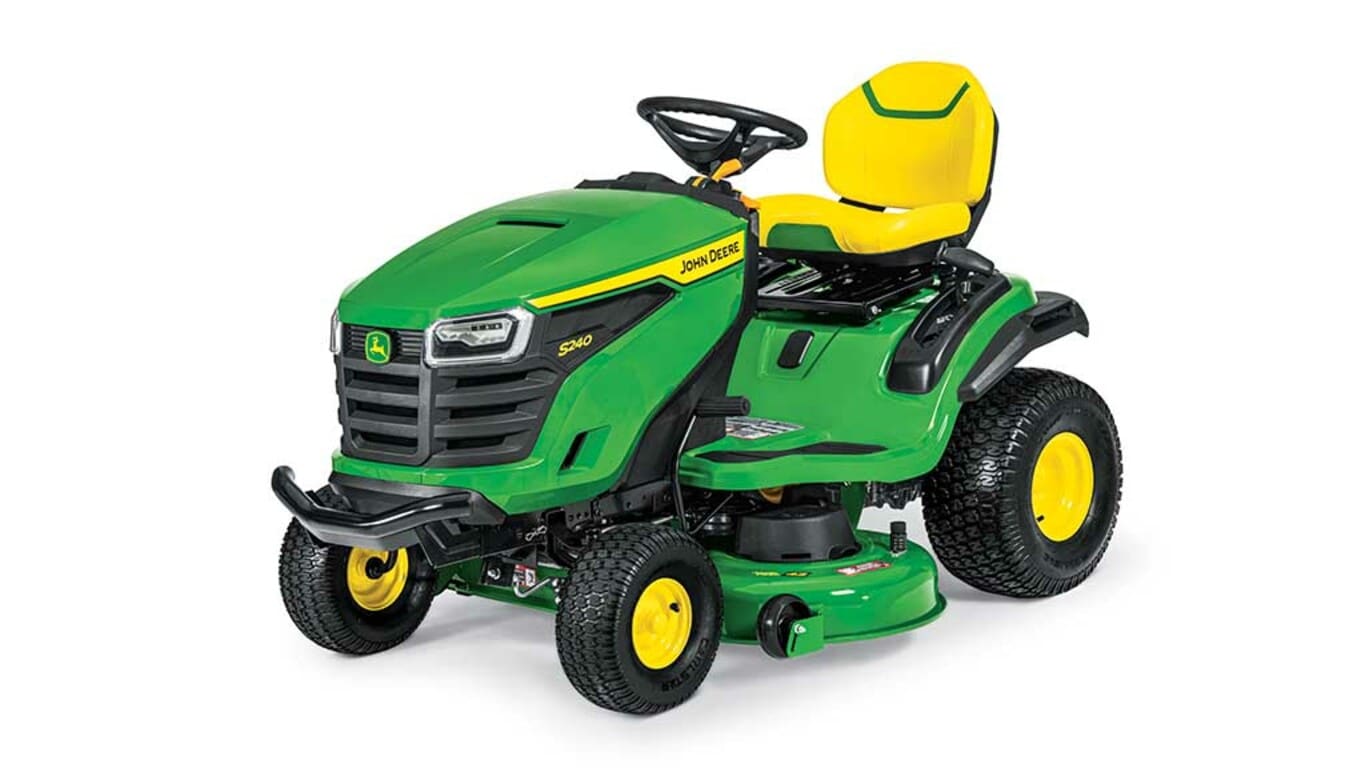

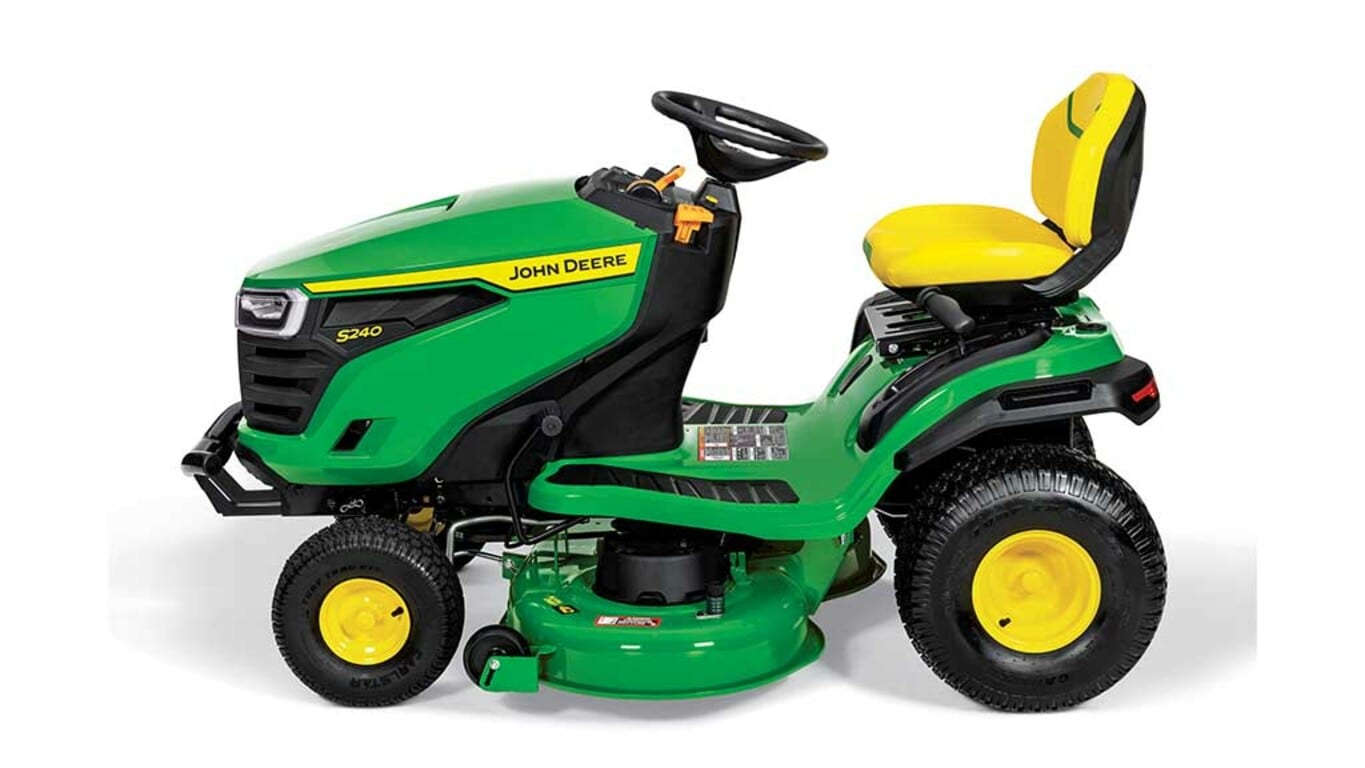

S240 LAWN TRACTOR

The S240 Tractor has a large 44.3-cu in. (726-cc) displacement engine with premium features that provide superior performance and reliability:

• Large cleanout ports, integrated into the engine shroud, are located over the cylinder heads to allow for easy inspection and removal of any debris that may have collected there.
• Premium engine oil and air filtering systems and cooling design provide increased reliability and engine life.

The 21.5-hp (16-kW) V-twin engine provides plenty of power and torque to handle tough mulching, mowing, and bagging conditions:

• V-twin cylinder design for greater torque, lower vibration, and improved sound quality
• Electronic ignition for fast starts
• Cast-iron cylinder liners for longer engine life
• Overhead valves for excellent power and fuel economy
• Full-pressure lubrication and oil filter for cleaner oil, prolonging engine life and extending the time between oil changes
  • Also more effective when operating the tractor on an incline
• In-line fuel filter for reliable operation

The engine speed lever and choke control lever are separate controls:

• The engine speed lever is easy to use - there is no need to worry about pushing too far and engaging the choke as on single throttle/choke lever systems.
• The choke lever is spring loaded so the operator cannot accidentally operate the tractor with the choke on.

 Engine hood opens wide for easy access to service points:

• It is easy to inspect and clean the engine area.
• Important service points are exposed.
• Cleanout ports designed into the engine shroud make cleaning the engine cooling fins easy.
• The high-quality engine used in the S240 does not require an 8-hour oil and filter change because improvements in the manufacturing process and quality of parts, components, and oils have eliminated the need for the short interval oil change requirement.

Fuel tank

• Capacity is 2.4 U.S. gal. (9.08 L).
• Fuel-filler opening is conveniently located under the seat.
  • Filling the tank without spilling is easy.
  • The tethered fuel tank cap is more convenient.
  • The sealed fuel cap helps keep vapors inside the tank.

The 42-in. (107-cm) Accel Deep Mower Deck is a stamped-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds or in tall grass:

• 4.97-in. (12.6-cm) depth throughout the entire deck shell for optimum mowing, mulching, and bagging performance
  • Optional MulchControl™ system provides superior mulching performance and versatility
• Stamped-steel design eliminates sharp edges and corners where material can build up and diminish mowing performance
• Mower deck suspended from the vehicle for a smooth and level cut
  • Adjustable mower wheels, positioned just above ground level, help reduce scalping
• 0.25-in. (6.4-mm) cut-height increments allow the mower to be set at the desired cut height
• Compatible with efficient 6.5-bu (229-L) two-bag material collection system

Excellent cut quality

Deep mower-deck stamping gives excellent cut quality. It allows the cut and suspended material room to exit the deck without getting recut:

• Reducing the amount of recutting enables more power to be used to cut incoming grass, which greatly improves mower capacity.
  • Helps maintain excellent cut quality at faster mowing speeds
• Clean flow of material out of discharge area prevents cut material from interfering with cutting the incoming grass, making it possible for the blades to cut incoming material cleanly.
• Even in mulching mode, cut evenness is improved compared to other designs because the additional depth allows for continuous circulation, optimal recutting, and an even distribution of clippings.

Productivity - gets the job done fast

Deep mower-deck stamping gives high productivity, which gets the job done fast. It allows the cut and suspended material room to exit the deck quickly, reducing the amount of recutting so more power is available to process incoming grass:

• Greatly improves mowers capacity to maintain excellent mowing performance in difficult mowing conditions and at higher speeds

Large discharge opening is both high and wide to handle more material:

• Gives a smooth, even discharge of clippings at all mowing speeds
• Reduces the chance of plugging, especially important when operating in wet, thick, or dense grass and when bagging
• Cut-and-throw chute has a large, optimized inlet which aids in collecting material by using airflow from the large deck opening

Cleanliness - for the mower and the operator

The flat-top shape of the deck stamping is optimal for keeping itself and the operator clean:

• There are few places to catch and hold material on top and underneath the deck.
  • Top of deck stays cleaner, reducing time and effort needed for cleaning and service
  • Underside of deck is self-cleaning to maintain optimum performance without buildup of material to interfere with the flow of air and clippings
  • Less need to clean and remove buildup of material from underside deck
• The depth of the Accel Deep mower deck minimizes the amount of material that escapes from the front of the deck
  • Limited amount of material to drift onto the operator and mower deck
  • Even flow of material discharged out the chute, less recutting results in larger pieces that are less likely to end up on the operator
  • Mulching prevents the discharge of material completely and MulchControl makes mulching a practical solution for most mowing situations.

Cleaning a mower deck, both top and bottom, is one of the most frequent maintenance activities:

• The flat-top design reduces places for material to build up and makes material that does collect easy to remove.

6.5-bu (229-L) rear bagger

An optional 6.5-bu (229-L) cut-and-throw rear bagger material collection system (MCS) is available and comes with bagging blades. Special blades are not required but they can be installed for enhanced performance.

The bagger provides an efficient means of collecting grass clippings and leaves. It can be set up without tools in minutes and has easy-to-empty bags.

A wash port is provided to make cleaning the underside of the mower deck easy.

• Hose connector is included with the mower deck.

Superior durability is designed in

The 42A Mower Deck has strong spindle pockets, to keep the blades aligned, even after years of tough service:

• Ribs in the deck shell add strength where it is needed.
• The 42A has a 16 percent heavier overall weight than the Edge™ Xtra 42-in. (107-cm) Mower Deck.

Mower wheels are double captured:

• Provides greater strength and durability for longer, trouble-free life.
• Single-bolt adjustment makes setting wheels to the correct height for the cutting height quick and easy.

Low-tension belt-drive design reduces the side load on the engines lower bearing and mower deck bearings for longer life.

Rolled outer edge of the deck provides extra strength and protection.

Dual-stage E-coat and powder-paint coatings provide extra protection from rust.

Versatility - easy to change between side discharge, mulch, and bagging modes

The 42A Mower Deck is designed for maximum versatility, providing the greatest ease in changing from one mower discharge mode to another:

• With an optional MulchControl system installed (along with the special mulching blades), changing from side discharging to mulching or vice versa is done with the simple flip of a lever or push of an electric switch.
• The cut-and-throw rear bagger can be used with MulchControl by removing the rear MulchControl baffle (A) before installing the bagger chute. The baffle is held in place with two carriage bolts. To return to mulching, the chute needs to be removed and the baffle replaced.

Mower blades

High-lift bagging blades are included with the bagger chute. They provide optimum performance when bagging in difficult conditions, such as when the grass is moist, dense, or long:

• High-lift bagging blades also work well when side discharging material.

Mulching blades are included with the optional MulchControl system. They can be used for mulching, side discharging, and bagging in most conditions.

Mower blade use chart

The 48-in. (122-cm) Accel Deep Mower Deck is a forged-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds or in tall grass:

• 4.83-in. (12.3-cm) depth throughout the entire deck shell allows for optimum mowing, mulching, and bagging performance.
  • Optional MulchControl™ system provides superior mulching performance and versatility.
• Forged-steel design eliminates sharp edges and corners where material can build up and diminish mowing performance.
• Mower deck is suspended from the vehicle for a smooth and level cut.
  • Adjustable mower wheels positioned just above ground level help reduce scalping.
• 0.25-in. (6.4-mm) cut-height increments allow mower to be set at the desired cut height
• Compatible with high-performance Power Flow™ material collection system

Excellent cut quality

NOTE: Optional front center rollers shown in above mower deck photos.

Deep mower-deck forging gives excellent cut quality. It allows the cut and suspended material room to exit the deck without getting recut:

• Reducing the amount of recutting enables more power to be used to cut incoming grass, which greatly improves mower capacity.
  • Helps maintain excellent cut quality at faster mowing speeds
• Clean flow of material out of the discharge area prevents cut material from interfering with cutting the incoming grass, making it possible for the blades to cut incoming material cleanly.
• Even in mulching mode, cut evenness is improved compared to other designs because the additional depth allows for continuous circulation, optimal recutting, and an even distribution of clippings.

Productivity - getting the job done fast

Deep mower-deck forging gives high productivity, which gets the job done fast. It allows the cut and suspended material room to exit the deck quickly, reducing the amount of recutting so more power is available to process incoming grass:

• Greatly improves mowers capacity to maintain excellent mowing performance in difficult mowing conditions and at higher speeds

Large discharge opening is both high and wide to handle more material:

• Gives a smooth, even discharge of clippings at all mowing speeds
• Reduces the chance of plugging, especially important when operating in wet, thick, or dense grass and when bagging

Cleanliness - for the mower and the operator

The flat-top shape of the deck forging is optimal for keeping the deck and the operator clean:

• There are few places to catch and hold material on top and underneath the deck.
  • Top of deck stays cleaner, reducing time and effort needed for cleaning and service
  • Underside of deck is self-cleaning to maintain optimum performance without build-up of material to interfere with the flow of air and clippings
  • Less need to clean and remove buildup of material from underside deck
• The depth of the Accel Deep mower deck minimizes the amount of material that escapes from the front of the deck.
  • Limited amount of material drifts onto the operator and mower deck
  • Even for material discharged out of the chute, less recutting results in larger pieces that are less likely to end up on the operator
  • Mulching prevents the discharge of material completely, and the MulchControl system makes mulching a practical solution for most mowing situations.

Cleaning a mower deck, both top and bottom, is one of the most frequent maintenance activities:

• The flat-top design reduces places for material to build up and makes material that does collect easy to remove.

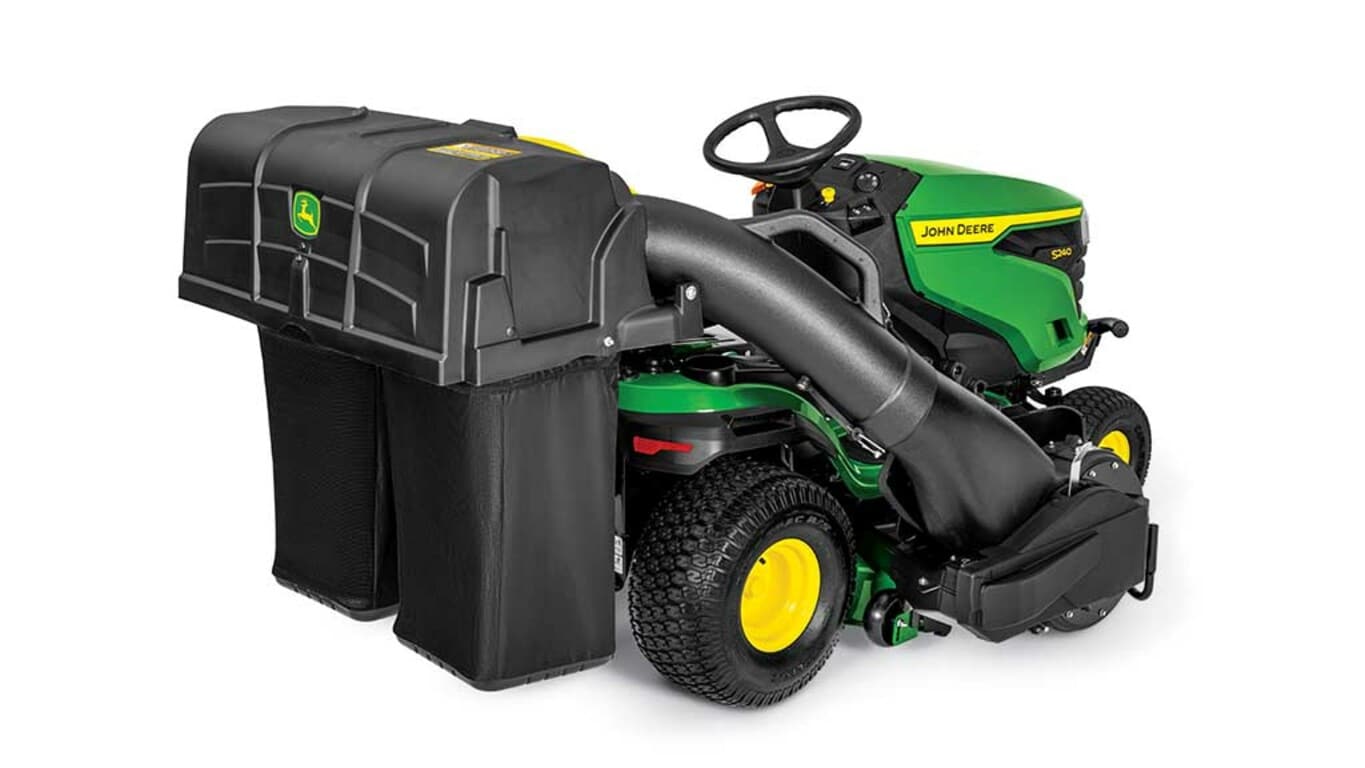

6.5-bu (229-L) Power Flow bagger

An optional 6.5-bu (229-L) Power Flow material collection system (MCS) is available. It provides efficient bagging performance and has easy-to-empty bags:

• The Power Flow blower and chute are easy to install. The Power Flow blower swings out for easy cleanout and cleanup.
• The hopper design provides modern styling, great bagging performance, cleaner operation, and easy-to-empty bags:
  • 6.5-bu (229-L) capacity
  • Easy-to-attach Power Flow blower
  • Easy-to-attach chute

A wash port is provided to make cleaning the underside of the mower deck easy.

• A hose connector is included with the mower deck.

Superior durability is designed in

The 48A Mower Deck has strong spindle pockets, to keep the blades aligned, even after years of tough service:

• Forged from strong 10-gauge, 0.135-in. (3.4-mm) steel
• Ribs in the deck shell add strength where it is needed.

Mower wheels are heavy duty:

• Provides greater strength and durability for longer, trouble-free life.
• Setting wheels to the correct height for the cutting height is quick and easy.

Low-tension belt-drive design reduces the side load on engine lower bearings and mower deck bearings for longer life.

The mower deck features a 5/8-in. (16-mm) diameter solid-steel rod side bumper that provides extra strength and protection.

Dual-stage E-coat and powder-paint coatings provide extra protection from rust.

Versatility - easy to change between side discharge, mulch, and bagging modes

The 48A Mower Deck is designed for maximum versatility, providing the greatest ease in changing from one mower discharge mode to another

• With an optional MulchControl system installed (along with the special mulching blades), changing from side discharging to mulching or vice versa is done with the simple flip of a lever.
• The Power Flow rear bagger can be used with MulchControl by simply using the MulchControl lever to move the mulch baffle to the side-discharge position.

Mower blades

Side-discharge blades can be used with the Power Flow system when bagging.

Mulching blades are included with the optional MulchControl attachment. They can be used for mulching, side discharging, and bagging.

Mower blade use chart

The optional MulchControl system makes mulching more practical for many mowing situations because it not only does an excellent job of mulching, but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:

• Creates a beautiful looking lawn
• Smaller grass clippings disappear into the lawn canopy
• Reduces fertilizer needs
• Grass clippings are not blown onto the operator, driveways, or flower beds
• No need to dispose of bags of clippings

How MulchControl works

MulchControl is an innovative, simple design that is easy to use and maintain:

• The MulchControl system includes an adjustable MulchControl baffle near the discharge chute and fixed baffles to control the flow of material under the deck.
• The MulchControl handle is on top of the mower deck and is used to open and close the MulchControl baffle.
• When the MulchControl baffle is open, most of the material flows freely out the discharge deflector or into a material collection system.
• When the MulchControl baffle is closed, material stays within the deck and gets chopped into mulch and deposited in the turf.

MulchControl is well-suited to the following mowing situations:

• For operators who usually mulch, but side discharge when grass gets too long
• For operators who usually side discharge, but would like to close the chute to control clippings in some areas
• For operators who always mulch a main lawn, but often side discharge secondary lawns
• For operators who collect clippings but want to go farther before emptying the material collection system

MulchControl puts the operator in control of the clippings.

MulchControl limitations

While in the side-discharge mode, MulchControl still mulches about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:

• When cutting strong southern grasses, such as Zoysia and Bermuda
• When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States
• When optimum bagging and lawn cleanup is desired

When bagging with MulchControl on a 48A mower deck, the MulchControl baffle can be opened or closed with the Power Flow™ blower installed. The Power Flow blower runs without material when the baffle is closed.

When bagging with MulchControl on a 42A mower deck, the cut-and-throw rear bagger can be used with the MulchControl blades. However, the rear MulchControl baffle (A) needs to be removed to install the bagger chute. The baffle is held in place with two carriage bolts. To return to mulching, the chute needs to be removed and the baffle replaced.

MulchControl compatibility

Each MulchControl system is an optional field-installed attachment and includes everything needed for handle actuation: baffles, handle, and mulch blades.

An exclusive 3-year or 200-hour (whichever comes first), single-source, bumper-to-bumper warranty* is standard for all John Deere 200 Series Tractors.

• The warranty is hassle free, with both the mower and the engine covered by a single warranty.
• If the mower is sold, the remaining warranty term is transferable to a new owner.
• Premium features of 200 Series Tractors allow for this longer warranty period, with more coverage than comparable tractors.

*Term limited to years or hours used, whichever comes first, and varies by model. U.S. and Canada only. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.

A Kanzaki® Tuff Torq® hydrostatic transmission gives an infinite choice of speeds and makes changing the direction of travel easy.

Side-by-side foot pedals control the speed and direction of travel:

• Automotive-type accelerator controls ensure easy operation.
• The operator can change direction without lifting foot off the platform.
• A large pedal surface gives superior operator comfort.

Appropriate transmissions are used in each tractor model, depending on rear tire size and tractor performance requirements, to ensure excellent performance and reliability:

• Tuff Torq TLT200 – S220
• Tuff Torq K46 – S240

Kanzaki and Tuff Torq are trademarks of Kanzaki Kokyukoki Mfg. Co., Ltd.

An advantage of lawn tractors is their ability to use equipment for snow removal. Lawn tractor owners can add a John Deere snow blower or front blade to make quick work of moving snow whenever the need arises. Weather enclosure and tire-chain attachments add comfort and performance.

Equipment available for snow removal includes:

• 44-in. (112-cm) Snow Blower
• 46-in. (117-cm) Front Blade
• Tire chains or TerraGrip traction belts
• Weather enclosure
• Weights

Light emitting diode (LED) headlights complement modern styling

The 200 Series Lawn Tractors are equipped with LED headlights that:

• Complement the tractor’s modern styling
• Use less power and are far more durable than incandescent light bulbs
• Provide a natural light quality that increases visibility in low-light conditions
• Light the field of view evenly

Hood will not rust or dent

The hood used on 200 Series Lawn Tractors is made using the mold-in color process. The hood reduces sound, will not rust or dent, and provides resistance to UV light. Side openings let in plenty of cooling air while keeping the sound level low.

Reliable full-length welded steel frame

The solid one-piece frame is constructed of 12-gauge, 0.105-in. (2.7-mm) steel:

• Full-length robotically welded frame design has high-strength steel rails for added strength and long life.
• One-piece steel fender deck is bolted to the frame.

The S240 comes with premium Turf Trac tires for superior traction and appearance: A more rounded profile reduces lawn scuffing and steering effort.

Cast-iron front axle does not bend

The front axle is constructed of solid cast iron that will not bend:

• Automotive-like steering system with sector-and-pinion steering gears and single drag link and tie rod provides a very strong, low-effort, and tight-turning system.
• Grease fittings allow regular lubrication to help maintain easy steering and minimize wear.
• Large, 0.75-in. (19-mm) diameter wheel spindles provide excellent durability.

Front bumper protects the tractor

The front bumper provides additional front-end protection and attractive, bold style.

CargO Mount™ system makes installation of rear bagger and other attachments easy

The CargO Mount system is a combination of front and rear mounting points that provide convenient and easy installation of the rear bagger and other attachments.

The operator station is designed for operator comfort and easy operation:

• Controls are positioned where they are easy to reach and use to control the tractor.
• The steering wheel is positioned and angled to give the operator plenty of room and steering comfort.
• The seat is positioned to provide the most comfortable operator position.

Controls are easy to see and use:

• Deluxe, 14-in. (35.6-cm) diameter steering wheel for greater operator comfort and control
• Ignition switch is on the dash for starting ease

Wide footrest areas with non-slip, anti-vibration floor mats are provided for operator comfort:

• The wide footrest makes it easier to step over the mower deck while entering or exiting the seat.
• Debris-removing channels help keep the footrest area clean and dry.

Comfortable seat

Operator comfort is enhanced with a 15-in. (38-cm) high-back, cut-and-sewn two-piece seat with an open back:

• Improved visual appeal is provided by the thick cushion and green-colored accents that make the seat look as good as it feels.
• Long-term pliability and less chance of cracking are advantages of the cut-and-sewn process, which does not require heating during the manufacturing process and gives a more uniform vinyl thickness.
• The open-back seat design keeps the operator cooler
• Especially helpful when operating the tractor for extended periods of time
• Easily adjusted forward or rearward while in the seat
• Seat travel of 5.5 in. (14 cm) and 10 different positions
• The green plastic seat adjustment lever is easy to locate and use

The seat can be tilted forward for protection from the elements and to provide easy access to the fuel tank:

• Rubber isolators under the seat smooth out the ride for greater operator comfort.

Convenient storage

The beverage holder and covered storage compartment, located on the right fender, add value and operator convenience. A USB Type-C power port is located inside the compartment to charge mobile devices in the protected location.

Fender flares cover the tires more completely and add style to the tractor. Handgrips give extra comfort for the operator, especially when operating on hillsides. Reflectors make the tractor more visible.

Instruments and controls

Three-spoke steering wheel for greater operator comfort and control:

• Deluxe, 14-in. (35.6-cm) diameter steering wheel gives greater comfort and control compared to smaller diameter steering wheels used on many lawn tractors.

The contoured dash has clean, attractive styling:

• Controls are color coded and labeled for easy identification by the operator.
• Controls are logically placed and easy to reach.
• Easy-to-read fuel gauge is conveniently located on dash.
• The hour meter makes it easy to tell when oil changes and other maintenance should be performed.
• The ignition switch is on the dash for starting ease.
• Functional design of the controls provides good appearance and a comfortable feel.

The engine speed lever and choke control lever are separate controls:

• The engine speed lever is easy to use.
• The choke lever is spring loaded so the operator cannot accidentally operate the tractor with the choke on.

The mower deck is engaged with an easy-to-use electric PTO switch:

• The electric switch requires only a short movement.
• With an electric PTO clutch, the mower drive belt stays under tension at all times for improved reliability compared to manual PTO engagement systems.

Easy-read fuel gauge shows fuel level on the dashboard

The easy-read fuel gauge shows how much fuel is in the tank and can be seen on the dashboard:

• Easy to check fuel level
• Convenient location
• Visible in cloudy or dusk conditions (is not backlit)
• Will not slosh from bumps
• The MowerPlus™ smartphone app can read and remember the fuel level (optional MowerPlus deluxe smart connector required)
• The hour meter is also visible on the fuel gauge display

Side-by-side transmission control pedals

Side-by-side foot pedals control the speed and direction of travel:

• Automotive-type accelerator controls ensure easy operation.
• Operator can change direction without lifting foot off the platform.
• Large pedal surface gives superior operator comfort.

Cruise control

Cruise control is standard equipment:

• To engage, lift up on the cruise lever and hold until the foot is removed from the forward pedal.
• The cruise control can be released by pushing on the brake pedal or the forward pedal.

Parking brake control

The parking brake control is conveniently located for easy access. It holds the brake pedal securely in the locked position.

Mower deck height adjustment and handgrip

A spring-assisted, ergonomically designed lift lever simplifies adjusting the mower cut height:

• Increments of 1/4 in. (0.64 cm) allow fine-tuning the cut height.
• Cut height is adjustable from 1 to 4 in. (2.5 to 10.2 cm).
• The lift handle is shaped for easy use and is out of the way of entering or exiting operators.

Reverse implement option (RIO)

Using RIO

CAUTION: Children or bystanders may be injured by rotating blades. Before traveling forward or rearward:

• Carefully check the area around the machine.
• Disengage the mower before backing up.

NOTE: Backing up while the mower is engaged is strongly discouraged. RIO should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.

1. Stop forward travel.
2. Look behind the machine to be sure there are no bystanders.
3. Push and hold in the RIO switch while depressing the reverse pedal slightly.

NOTE: If the mower or other attachment stops while repositioning the machine, return the attachment engagement switch to the off position. Start engine and engage mower. Begin again with step 2.

4. Release the RIO switch and reposition the machine as the machine begins to move rearward.
5. Resume forward travel. The mower or other attachment should continue operating.
6. Repeat procedure to position the machine again.

John Deere riding lawn mowers are equipped with a QR code label that links to an owner support website. The label can be found on the rear fender, to the left of the seat.

The owner support website is formatted for smart phones and available without setting up an account and password. The QR code includes the mower’s serial number, enabling the owner support website to provide a maintenance schedule, service parts, attachments, how-to guide, videos, warranty information, and an operator’s manual for the specific mower.

The owner support website also allows users to purchase service parts, schedule dealer service, purchase extended warranties, and download the Equipment Mobile app. The Equipment Mobile app enables users to maintain a shared digital service record with their dealer.

Serviceability is convenient with an easy-open hood

The one-piece hood opens easily to permit checking and servicing the engine:

• Important service points are located within easy reach.
• A service interval decal is provided inside the tractor hood for convenience when servicing the tractor.

The engine fuel and oil filters, the oil check/fill tube, and the oil drain tube are exposed for serviceability when the hood is opened.

The seat tilts up and out of the way to make adding fuel easy.

Overview

Keep your John Deere equipment running its best with the John Deere Equipment Mobile App. Download the app from the mobile device’s app store, then add all your John Deere equipment by scanning the serial number bar codes. Once your equipment is added, you can access all your product’s model, serial number, and model year information in one place. The app also provides maintenance, parts, and support resources that are specific to your serial number(s).

Find the right parts the first time

It is important to get the right parts the first time. When you load your equipment list, Equipment Mobile provides parts information specific to your serial number(s). This is helpful to you and your John Deere dealer, as some parts can vary by serial number range.

Plan, track, and coordinate maintenance with your dealer

Equipment Mobile includes comprehensive maintenance plans for each piece of your equipment. The maintenance plan screen keeps track of completed tasks, provides a place for your notes, and provides parts listings. You can also share your maintenance plan with your dealership, enabling tasks completed by the dealer to be included.

Operator’s manual in the palm of your hands

A machine’s operator’s manual is a go-to resource that is available in Equipment Mobile. You can search, view, and download a copy. The operator’s manual is specific to the serial number(s) of your equipment.

Smart Connectors

A smart connector links the mower to the Equipment Mobile App and transmits vehicle information via Bluetooth® wireless technology to provide:

• Engine hours, that enable maintenance reminders
• Key switch status and battery level to warn if the battery is low
• Fuel level - even when away from the mower, the app remembers the fuel level so you can make sure the mower is fueled when it is time to mow

Optional BUC11960 smart connector is for use with:

• S120, S130, S160, S170, and S180 Tractors
• Model year 2021 and newer S240 Tractors (serial number 880,001-)
• Z515E, Z530M, Z530R, and Z545R ZTrak™ Mowers

Hours, fuel level, key switch status, and battery level are updated whenever the Equipment Mobile device is in range of a mower with a BUC11960 smart connector.

Optional BUC10537 smart connector is for use with:

• Model year 2016 and newer Select Series X300 and X500 Tractors

Hours, fuel level, key switch status, and battery level are updated whenever the mower’s key is turned on and the Equipment Mobile device is in range of a mower with a BUC10537 smart connector. The X350R Tractor does not report exact fuel level, it only indicates if the mower is low on fuel.

The Z370R, Z370RS, and Z380R Electric ZTrak Mowers include the smart connector in base equipment.

On Electric ZTrak Mowers the battery level, charging status, and hours are transmitted when the Equipment Mobile device is in range of the mower, and the mower is on or actively charging. Equipment Mobile can also update an Electric ZTrak Mower’s controller software.

A smart connector requires the Equipment Mobile App. The John Deere Equipment Mobile App can be found in the mobile device’s app store.

Bluetooth is a trademark of Bluetooth SIG, Inc.
